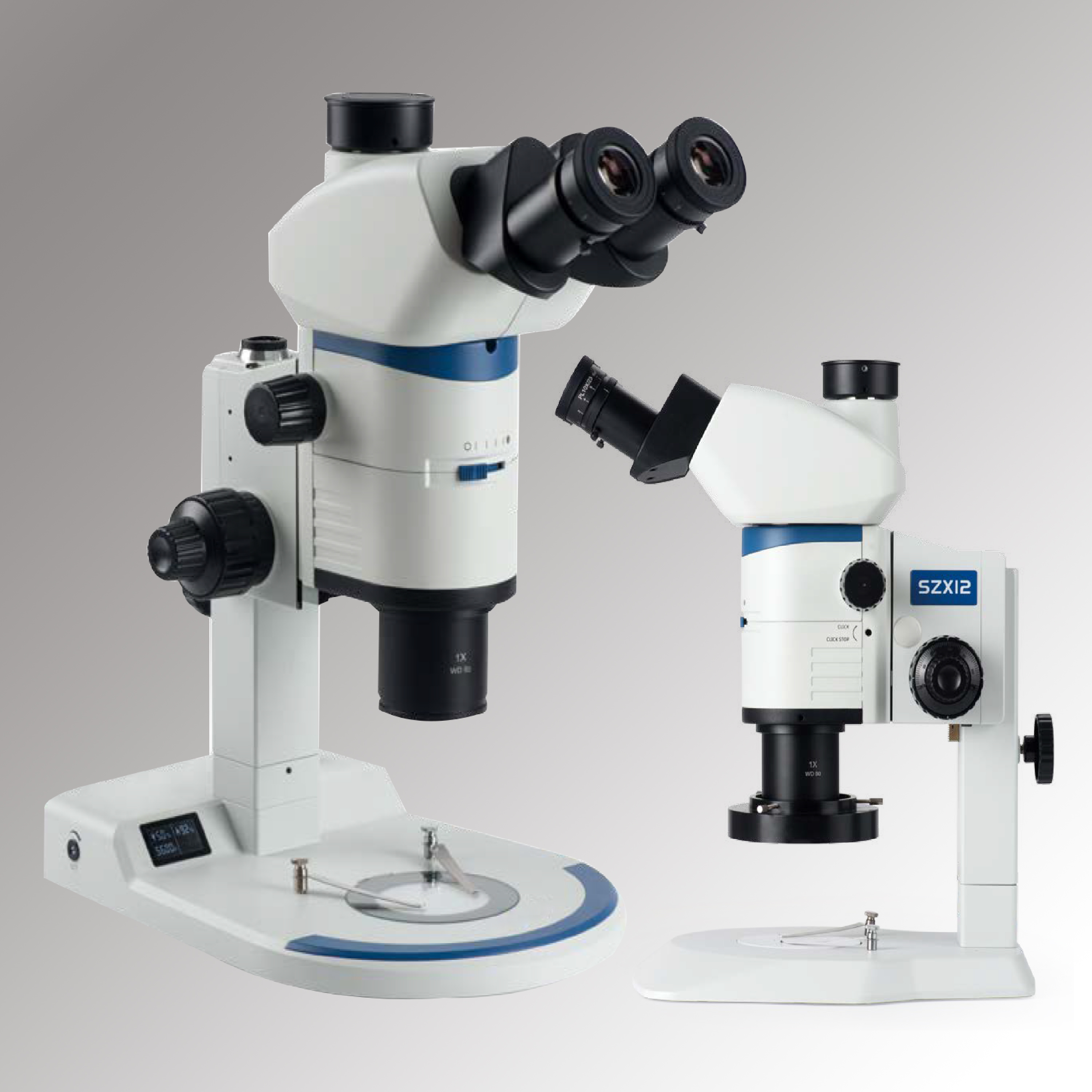

Viewing head hermes outlet
Tilting trinocular viewing head, 5~45 degree adjustable; binocular: trinocular= 100:0 or 0:100; interpupillary distance 50-76mm;
fixed eyepiece tube with lock screw
30 degree inclined trinocular head; binocular: trinocular=50: 50; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw
Eyepiece
High eye-point wide field plan eyepiece PL10X22mm, diopter adjustable
High eye-point wide field plan eyepiece PL15X16mm, diopter adjustable
High eye-point wide field plan eyepiece PL20X12.5mm, diopter adjustable
Zoom range Zoom range: 0.63X~8X, zoom ratio: 12.5 : 1; built-in aperture diaphragm; click stop for 0.63X、0.8X、1X、1.25X、1.6X、
2X、2.5X、3.2X、4X、5X、6.3X、8X
Main objective
0.5main objective,working distance70.5mm
1X main objective, working distance 78mm
1.5X main objective,working distance31.1mm
2X main objective, working distance 20mm
Body Coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm
Base
Plan base without illumination, with black & white plate (dia.100mm)
Plan base with transmitted illumination (work with external 5W LED fiber); built-in 360 degree rotatable mirror, location
adjustable
Ultra-thin base, multi-LED (5W), with digital readout of light intensity and color temperature (3200~5600K)
Illumination
5W LED light box (size: 270X100X130mm) with single fiber (500mm), color temperature 5000-5500K; operating voltage
100-240VAC/50-60Hz, output 12V
LED ring lamp (200 bulbs) Fake Rolex
Camera adapter 0.5X/0.65X/1X C-mount
