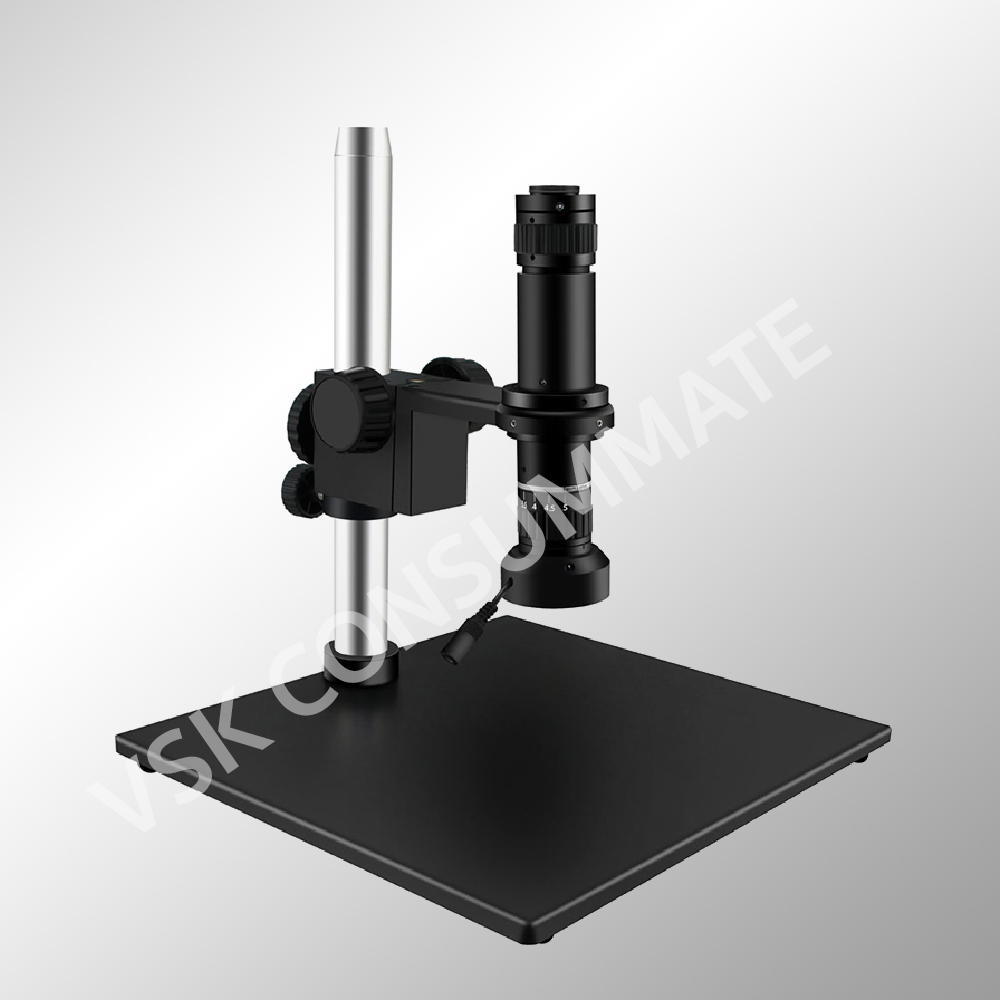

Monocular zoom lens
Machine Vision / Industrial Inspection

- Compact design, very suitable for the small installation space of modern equipment.
- Parallel optical system, high-definition, high contrast images, restore the true colors of the objects.
- Zoom ratio 1:8.3, zoom range 0.6-5x
- Standard working distance 86 mm
- Auxiliary objective/WD: 0.5x/160 mm, 0.6x/130 mm,1.5x/50mm, 2x/39 mm
- Standard 1x CTV adaptor, (optional 0.3x,0.5x,1.5x,2x, 3x).
- Optional for monoc / binoc observation, APO attachment lens, Coaxial light. Polarized filter
The SZ65 series zoom stereo monocular lens, compact design zoom lens
with combination of quality optics definition, resolution, depth of field and affordable pricing.
