Product Introduction

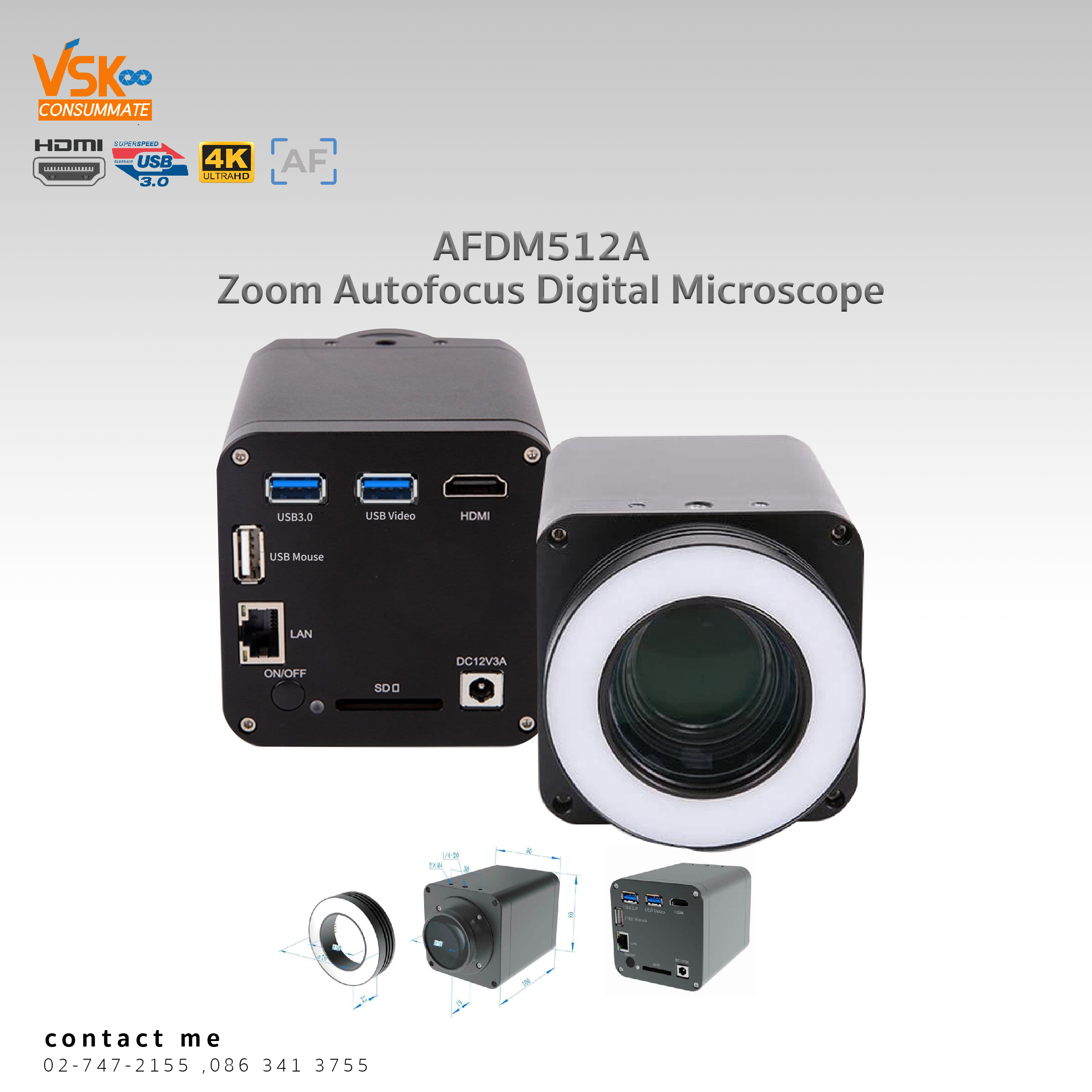

AFDM512A is a high-performance Continuous Zoom Autofocus Digital Microscope, featuring Sony IMX415LQR-C sensor, providing 18× (0.021X~0.39X) optical zoom, with working distance of 205-255 mm (standard 250 mm).
Resolution: 8MP (3840×2160)
Optical Zoom: 18× (0.021X~0.39X)
Working Distance: 205-255 mm (standard 250 mm)
Field of View: Low magnification: 255×145 mm, High magnification: 14.2×8 mm
Output Interfaces: HDMI2.0, USB3.0, Ethernet, Wi-Fi
Product Features
- Motorized zoom control with 5 groups of 16 lens elements, achieving 18× optical zoom, supporting autofocus and manual focus
- Default calibration information stored at standard measurement working distance for precise measurement
- Sony IMX415 1/2.8" 4K Starvis CMOS with high signal-to-noise ratio
- 4K HDMI/NETWORK/USB multi-interface output
- 4K/1080P HDMI output adaptive switching
- 4K60 fps low-latency HDMI output, average latency 40 ms
- SD card/USB flash drive local preview and playback, supporting RAW format
- Supports automatic network upload of captured files
- Supports USB voice control module with voice commands
- Provides real-time depth synthesis, real-time stitching, WDR and other functions
- Embedded XCamView: camera control panel, measurement toolbar, comprehensive control toolbar, autofocus control panel
- Powerful ISP: sharpening, 3D noise reduction, ROI white balance
