Product Features

• Color corrected finity optical system

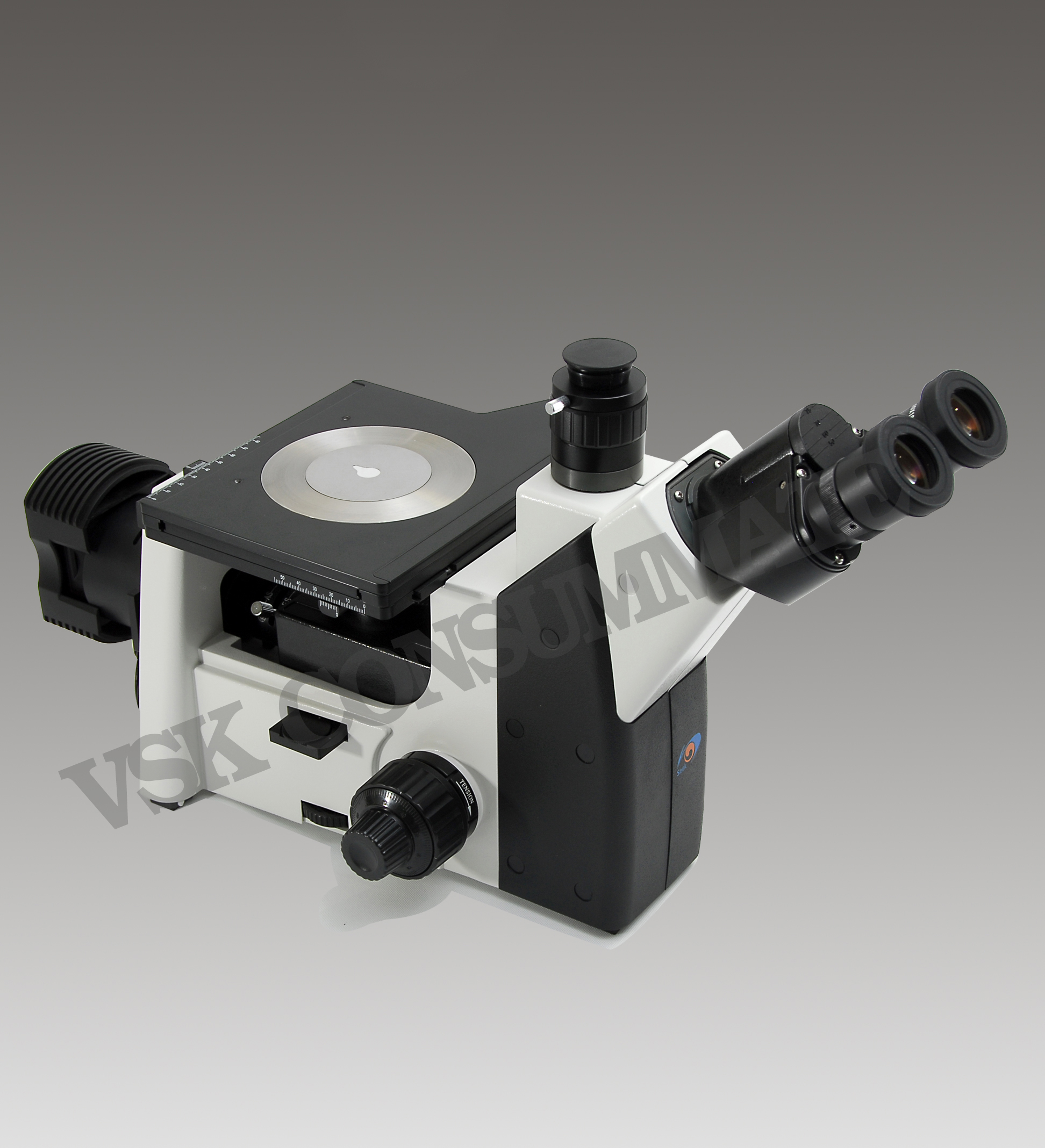

• Low cost , high quality inverted Metallurgical microscope design New super bright single 3W LED for reflect light
• The IE200M series microscope has entirely new improved on the traditional one.
• With the adopt Long working distance finite plan achromatic objective, IE200M emphasize stability and security.
• It has so many innovations on ergonomics that the users can observe simply and comfortably for long term, Human Hair Bundles
• High eye point wide field plan eyepiece PL10x/18mm provide wide and flat viewing space.

Application: testing semi-conductor process, materials and mineral researching, precision engineering etc.

Head
Seidentopf trinocular Head inclined at 45°,
Interpupillary Range 54mm-75mm, photo tube with CTV adaptor, Light split rate: 80%/20%
Eyepiece
Pair of PL10X/18 , FN18mm Plan eyepiece
Objective
Quintuple nosepiece with Long working distance finity Plan Achromatic objective
5X(NA0.13)WD 15.5mm,
10X(NA0.25)WD 8.7mm,
20X(NA0.40)WD 8.8mm,
50Xs(NA0.60)WD 5.1mm,
100Xs (NA0.8)WD 2.0mm
Focus
Low position coaxial focus system, coarse:38 mm per rotation, fine precision 0.002 mm
Stage
Mechanical Stage with coaxial drive control
Size: 180mm X 155mm, move range 75x40 mm replicas bolsos prada
Polarizer device
360° rotary analyzer, the polarizer and analyser both can shift out the optical way
Illumination
90V-240V wide-range of Voltage,
Reflection model: single 3W LED Koehler illuminator with field diaphragm, aperture diaphragm.
Option
CCD camera, LCD monitor, 6V/30W halogen illuminator etc.
