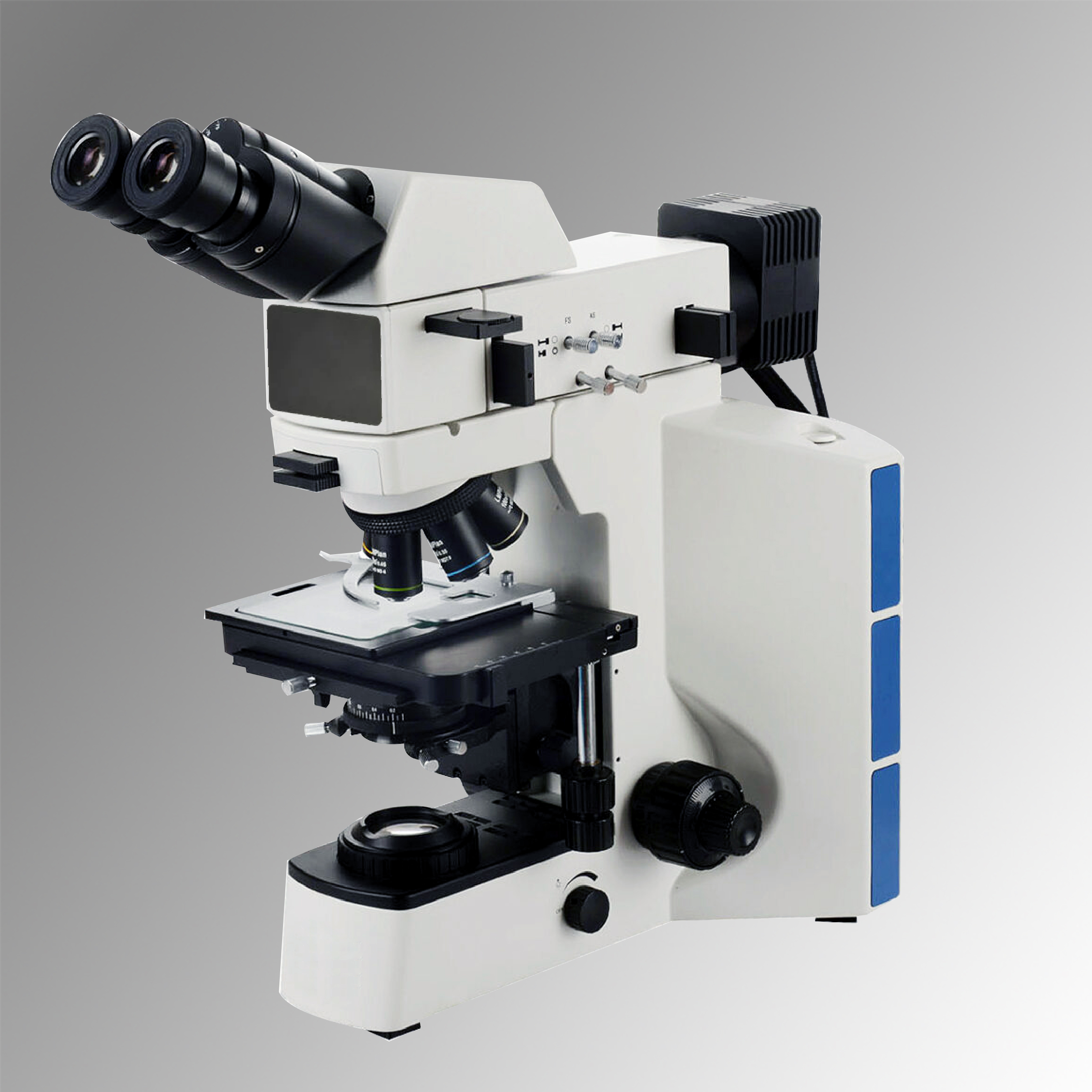

Optical system |
Infinity color corrected optical system |
|
Viewing head |
30°inclined gemel binocular head, interpupillary distance: 54mm~75mm, left diopter ±5 adjustable |
| 30°inclined gemel trinocular head, interpupillary distance: 54mm~75mm, diopter ±5 adjustable, splitting ratio R:T=100:0 or 50:50 | |
|
Eyepiece |
High eye-point wide field plan eyepiece PL10X22mm |
| High eye-point wide field plan eyepiece PL10X22mm, with reticle | |
| High eye-point wide field plan focusing eyepiece PL10X22mm | |
| High eye-point wide field plan eyepiece PL15X16mm | |
|
Objective |
LWD plan achromatic metallurgical objective 5x/10x/20x/50x/100x |
|
Nosepiece |
Reversed quintuple nosepiece |
|
Focus Adjustment |
Transmitted & Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm, fine precision: 0.002mm. Stage can be adjusted up and down, 28mm high sample is available. |
|
Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm, fine precision: 0.002mm. Stage can be adjusted up and down, 78mm high sample is available. |
|
|
Stage |
Double layer mechanical stage with X/Y coaxial adjustment, size: 175mmX145mm, moving range: 76mmX42mm. |
| Metal plate for transmitted frame; glass plate for transmitted & reflected frame. | |
|
Reflected illumination |
Wide-range voltage 100V-240V_AC50/60Hz, reflected lamp-house with single 5W LED, warm color. Koehler illuminator with oblique light device, center adjustable field and aperture diaphragm |
|
Transmitted illumination |
Wide-range voltage 100V-240V_AC50/60Hz, transmitted lamp-house with single 5W LED, warm color. |
|
Condenser |
N.A.0.9 swing-out achromatic condenser for transmitted frame, with center adjustable aperture iris diaphragm. |
|
Other accessories |
Yellow/neutral/IF550/LBD filter for transmitted light orologi replica |
| Digital camera adapter: 1X, 0.67X, 0.5X focusing C-mount, 3.2X photo eyepiece, photo tube with PK or MD mount, relay lens Interference filter for reflected light: Blue filter <=480nm Green filter 520nm~570nm Red filter 630~750nm White balance filter |
|
| High precision micrometer, scale value 0.01mm |
