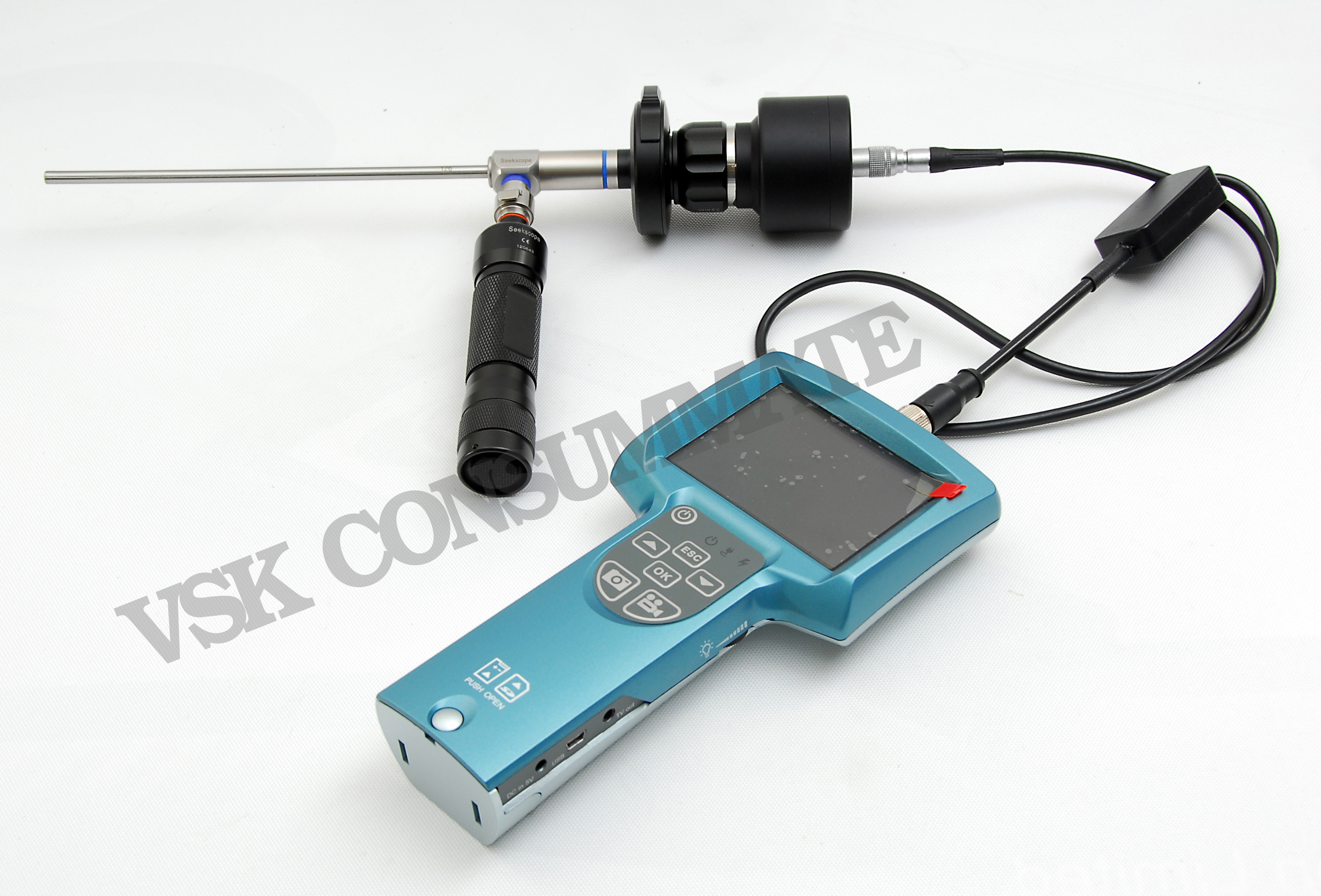

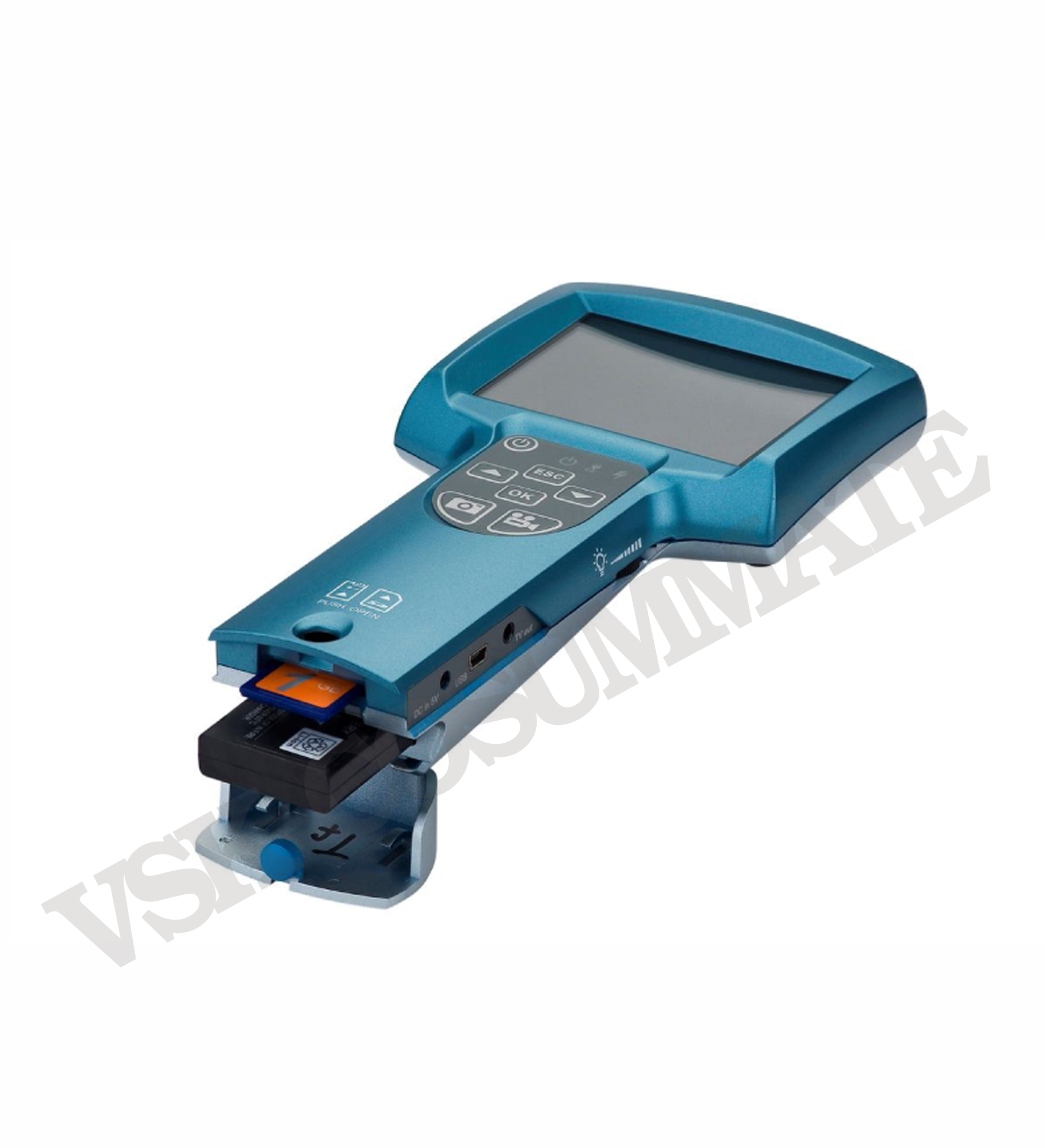

Monitor
-3.5” TFT LCD monitor
- Rechargeable Li-ion Battery 100-240V AC /5.5 V DC
- 2GB SD card for snapshot & movie capture ,
- Interface USB , AV out - LED Light adjustable control

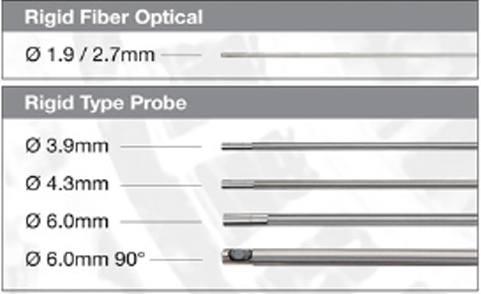

Rigid probe:
-OD 3.9mm (100,000 pixels) FOV 110 DOV 1-2 cm 3LED length
-OD 4.3mm (100,000 pixels) FOV 67 DOV 1-2 cm 4LED length
-OD 5.5mm (300,000 pixels) FOV 67 DOV 1-2 cm 6LED length
-OD 8.0mm (300,000 pixels) FOV 67 DOV 1-2 cm 6LED length
Length selectable 15, 30, 45, 70cm
-extension cable 3 meters
All probes work at temperature :-20 to 60 ° C
Ingress Protection: IP57
Option:
45-90° C side view mirror, Guide ball
